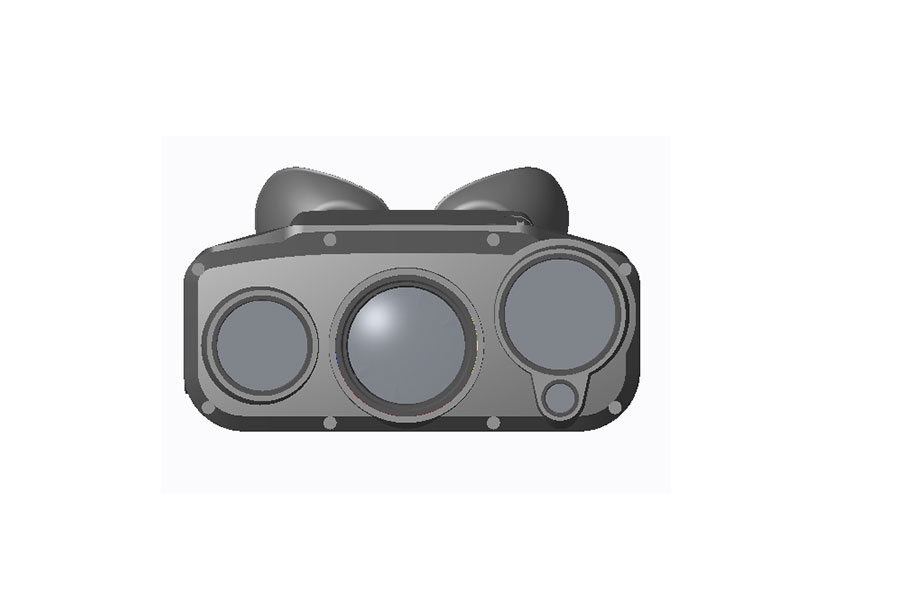

The handheld cooling camera is a versatile handheld device. The product integrates infrared imaging, visible light imaging, laser ranging, positioning and orientation, storage and playback, etc., providing viewers with rich battlefield information and greatly enhancing the individual field combat capability. This product is mainly used for individual reconnaissance and can work around the clock, especially in the environment with low visibility such as nighttime and fog, providing users with clear infrared and visible images, ranging information and positioning and orientation information, and discovering hidden targets. .
Detector 640x512, 15μm, 3.7μm ~ 4.8μm
Lens 40mm~200mm continuous zoom
Field of view 13.6° x10.9°~2.7°x2.1°
Resolution ≥1280 x 1024
Lens 4.5~148.5mm continuous zoom
Field of view 56° x 46°~1.8°x1.4°
Self-positioning accuracy (CEP) ≤ 5m (horizontal, open sky)
Target Positioning Accuracy (CEP) ≤ 35m (target distance 3km)
Orientation accuracy ≤ 0.5° (RMS)
Image with automatic image filtering, DDE enhancement, automatic/manual dimming, 4x electronic continuous magnification, photo, video and playback functions, built-in 32G SD card
Electrical interface Power, video PAL (NTSC can be customized), communication RS232, external Beidou module
Battery Built-in lithium battery, continuous working time ≥ 4h (no battery replacement)
Protection IP67
Weight ≤3.5Kg (with battery)
Size ≤248mm x 220mm x 115mm
